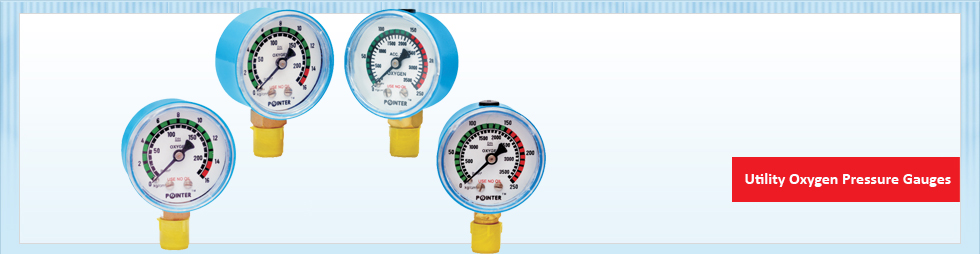

Utility Oxygen Pressure Gauges


Commercial Oxygen Pressure Gauge

'POINTER' oxygen pressure gauges are specially design &manufacturing with care due to oxygen application, it is used in Industries & Medical application, specially take care during Manufacturing & Testing used water. No Oil.

CONSTRUCTION FEATURES
Dial Size : 50mm, 63mm, 100mm
Accuracy : ± 2 %  of full scale
Case & Bezel (IP-65) : Drawn steel blue painted press fit type
Movement : Brass
Pressure Element : Brass ( <=70 bar 'c' type)
SS 316 (>70 bar coil type).
Socket : Brass
Dial : Aluminum white painted with
270 degree black scale marking
Pointer : Aluminum pointer with black finish.
Window : plain glass, polycarbonate glass
Over Load Protection : 125 % f.s.d. for <= 150 kg/cm2
115 % f.s.d for> 150 kg/cm2.
Joints : Soldering and Brazing
Mounting : Stem (bottom)
Connection : 1/8” , ¼” , 3/8” BSP/NPT
Scale Range : 16 kg/cm2 , 250 kg/cm2 in Duel Scale
OPTIONAL FEATURES
Pointer Instruments Oxygen(O2) ,Testing with water
Pointer Instruments SP & LDS model available on request

APPLICATION
Pneumatic Control System
Medical Application
Oxygen Cylinders
