| CONSTRUCTION FEATURES |
 |
| Dial Size |
: |
100mm & 150mm |
| Accuracy |
: |
±1% of full scale |
| Case & Bezel (IP-65) |
: |
SS 304 Snap Action Bayonet type |
| Movement |
: |
SS 304 / Brass |
| Pressure Element |
: |
SS 316 Diaphragm / Compact capsule |
| Dial |
: |
Aluminum white painted with
270 degree black scale marking |
| Pointer |
: |
Al. / Brass, Zero adjustment / Micro Zero Adjustment Pointer |
| Window |
: |
Toughened / Safety glass |
| Over Load Protection |
: |
125% of f.s.d. for ≤ 150 Kg/cm2
115% of f.s.d. for > 150 Kg/cm2 |
| Mounting |
: |
Direct Bottom Entry |
| Scale Range |
: |

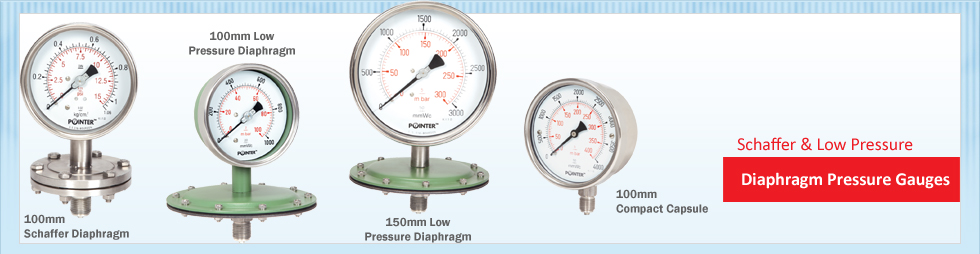

For Schaffer Diaphragm:
760mmHg Vacuum,
Compound, 0.6 to 21 Kg/cm2
For Low Pressure Diaphragm / Compact Capsule :
250mmWc to 6000 mmWc
|
| Upper Chamber Material |
: |
SS 304 / Carbon Steel Powder Coated. |
| Diaphragm Material |
: |
Brass / SS 316, Teflon Coating can provided if required. |
| Lower Chamber |
: |
SS 304 / SS 316, PTFE Lining provide if required
( Threaded / Flange type ). |
|
| OPTIONAL FEATURES |
|
 |
SP |
: |
Model with SS - 304 Case & Bazel |
|
Eco |
: |
Model with Carbon Steel Case & Bazel
( Powder Coated / Nical Plated ) |
|
Flanged connection available on request. |
|
| |
| APPLICATION |
|
Medical & Vacuum Technology, environment &
heating engineering, level indication & filter monitoring. |
|
