| CONSTRUCTION FEATURES |
 |
| Dial Size |
: |
63mm, 100mm & 150mm |
| Accuracy |
: |
±1.6% of full scale |
| Case & Bezel (IP-65) |
: |
SS 304 Snap Action Bayonet type & SS 304 press fit type |
| Pressure Element |
|
Wounded coil of Bi-Metal |
| Stem & Bulb |
: |
SS 316, SS 304 |
| Stem & Bulb Dia. |
: |
6mm, 8mm, 10mm & 12mm |
| Stem Length (Std.) |
: |
up to 300mm |
| Dial |
: |
Aluminum white painted with
270 degree black scale marking |
| Pointer |
: |
Brass / Alu. with black finish.
|
| Window |
: |
Plain Glass / Toughened / Safety glass |
| Joints |
: |
Argon arc welded |

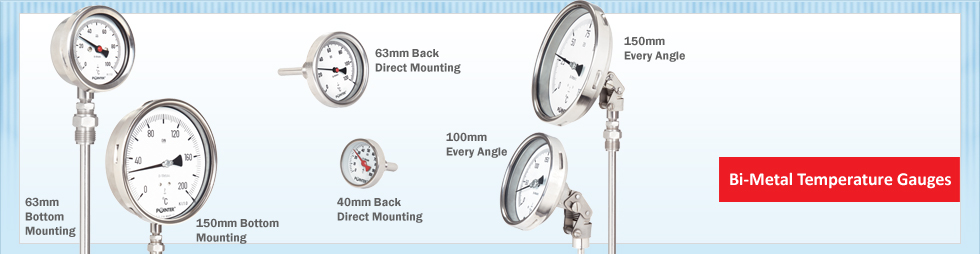

| Mounting |
: |
Stem (Bottom), Back & Every angle |
| Connection |
: |
¼" / 3/8" / ½" BSP / NPT ( Fix or Adjustable ) |
| Scale Range |
: |
-30 to 50° to 600° C or equivalent in °F |
|
| OPTIONAL FEATURES |
|
 |
Dual scale °C & °F available on request. |
|
Extra stem length on request. |
|
TC Connection on request. |
|
| |
| APPLICATION |
|
| Domestic & industrial heating system, hot water boiler, power plant, food & beverage industries, pharmaceutical industry etc... |
|
