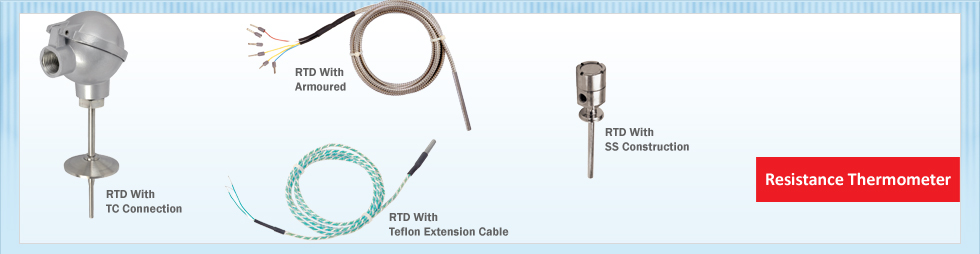

Resistance Thermometer

“POINTER” RTD intended high purity electrical resistance wire, non inductively would on ceramic or glass base material. When RTD element subjected to heat it changes its electrical resistance value corresponding to variation in temperature & thermal co-effecient.

CONSTRUCTION FEATURES
Enclosure : Die Cast Aluminum.
Protection : IP, Flameproof Grade IIA, IIB & IIC.
Accuracy : Class A & Class B.
Sensor Element : PT-100 Simplex & PT-100 Duplex.
Cold End : Terminated in to ceramic terminal block.
Stem Material : SS 316 / SS 304, Inconel, Monel, Haystalloy.
Stem Dia. : 6mm, 8mm, 10mm & 12mm.
Stem Length : 300mm Standard.
Configuration : 2 wire, 3 wire & 4 wire.
Connection : ¼", 3/8", ½" BSP / NPT Adjustable.
Range : -200°C to 600°C
OPTIONAL FEATURES
Pointer Instruments Head mounted transmitter can be mounted
Pointer Instruments Cable RTD available
Pointer Instruments Cable insulation made of PVC, Silicon,
Pointer Instruments Teflon Coated & SS Braded.

APPLICATION
Plastic processing machineries, Injection Moulding Machines, Engine Cylinder heads and oil pumps, bearing, pipelines & tanks. Energy & power plants, chemical industries, food & beverage industries, sanitary, heating & air conditioning technology.
