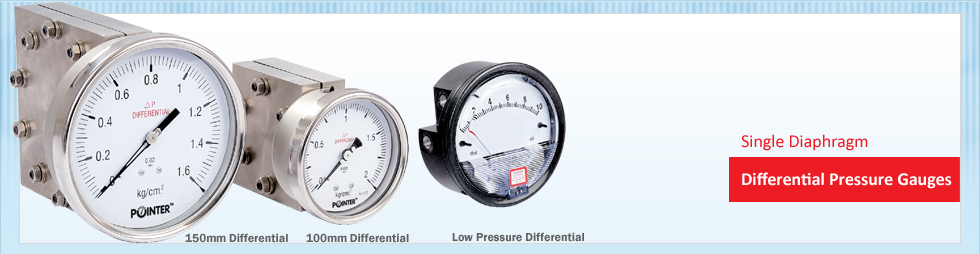

Single Diaphragm Differential Pressure Gauges

“POINTER” Differential pressure gauge is suitable for corrosive environment and gaseous media.
CONSTRUCTION FEATURES
Dial Size : 100mm & 150mm.
Accuracy : ±1.6% of full scale.
Case & Bezel (IP-65) : SS 304 Snap Action Bayonet type.
Movement : SS 304
Pressure Element : SS 316L Single diaphragm
HP / LP Chamber : SS 304 / SS 316.
Dial : Aluminum white painted with 270 degree
black scale marking
Pointer : Al. / Brass, Micro Zero Adjustment pointer
Window : Toughened / Safety glass
Sealing Ring : Viton
Static Pressure : 10 times of scale range.
Mounting : Direct & Surface.
Scale Range : 250mmWc to 6000mmWc ….. up to 10 Kg/cm2.
OPTIONAL FEATURES
Pointer Instruments D P with Electrical contact available on request.
Pointer Instruments Pressure equalizing valve available on request.
Pointer Instruments Surface & Pipe Mounting on request.

APPLICATION
Air, Gas & Filter Application.
