Thermocouple

“POINTER” Thermocouples are suitable for fluid and gaseous media under moderate mechanical load and normal chemical traces. Thermocouple are temperature sensors which directly supply a voltage dependent on temperature due to their thermoelectric properties.

CONSTRUCTION FEATURES
Enclosure : Die Cast Aluminum
Protection : IP, Flameproof Grade IIA, IIB & IIC
Sensor Element : J, K, E, T, N ( Simplex or Duplex )
  : J ( Fe-CuNi) - 800° C
  : K ( Nicr - Ni ) - 1200° C
  : E ( Nicr - CuNi ) - 800° C
  : T ( Cu - CuNi ) - 400° C
  : N ( NiCrSi-NiSi) - 1200° C
Cold End : Terminated in to ceramic terminal block
Stem Material : SS 316 / SS 304, Inconel, Monel, Haystalloy
Stem Dia. : 6mm, 8mm, 10mm & 12mm
Stem Length : 300mm Standard
Hot Junction : Ungrounded unless specified
Configuration : 2 wire, 3 wire & 4 wire
Connection : ¼", 3/8", ½" BSP / NPT Adjustable.
Range : 0°C to 1200°C
OPTIONAL FEATURES
Pointer Instruments Head mounted transmitter can be mounted

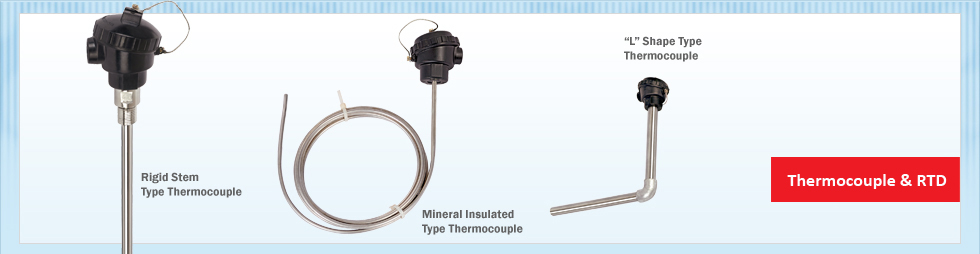

Pointer Instruments ‘L’ Shape or any other shape available on request.

APPLICATION
Machinery, Plant & Tank, Construction, energy & power plant, chemical industries, Sanitary, heating & air conditioning.
